Lunberg kitchen development

This kitchen has been designed and rendered using 20-20 CAD program.

materials used for the first kitchen concept are Iron sand foil-wrapped 18mm MDF board doors with white melamine 16mm particle board carcasses. Benchtop is Caesarstone in Nougat, with a 30mm pencil aris profile.

materials used for the second kitchen concept are Graphite High Gloss foil-wrapped 18mm MDF board doors with white melamine 16mm particle board carcasses. Benchtop is Infinity acrylic worktop in stone grey, with a 30mm square profile.

handles and sink are stainless steel.

view 1 (1).jpg
view 2 (1).jpg
LUNBERG CONCEPT 1 ELEVATION.jpg
LUNBERG CONCEPT 2 FLOOR PLAN.jpg
SYMBOLS LUNBERG CONCEPT 1.jpg
LUNBERG CONCEPT 1 ANALYSIS.jpg
LUNBERG CONCEPT 1 PERSPECTIVES.jpg
LUNGDEN 2 view 1 (1).jpg
LUNGDEN 2 view 2 (1).jpg
LUNBERG CONCEPT 2 ELEVATIONS.jpg
LUNBERG CONCEPT 2 FLOOR PLAN.jpg
LUNBERG CONCEPT 2 SYMBOLS.jpg
LUNBERG CONCETP 2 ANALYSIS.jpg
LUNBERG CONCEPT 2 PERSPECTIVE VIEWS.jpg

Thawley kitchen development

This kitchen has been designed and rendered using 20-20 program.

materials used for the first kitchen concept are a mixture of High Gloss white foil-wrapped 18mm MDF board doors and Black Forrest Oak melamine 18mm MDF boards, with white melamine 16mm particle board carcasses. Benchtop is Infinity acrylic worktop in stone grey, with a 30mm square profile.

materials used for the second kitchen concept are a mixture of High Gloss white foil-wrapped 18mm MDF board doors and Dark Oak melamine 18mm thick, with white melamine 16mm particle  board carcasses. Benchtop is Caesarstone in Ice snow with a 30mm square profile.

Handles and sink are stainless steel.

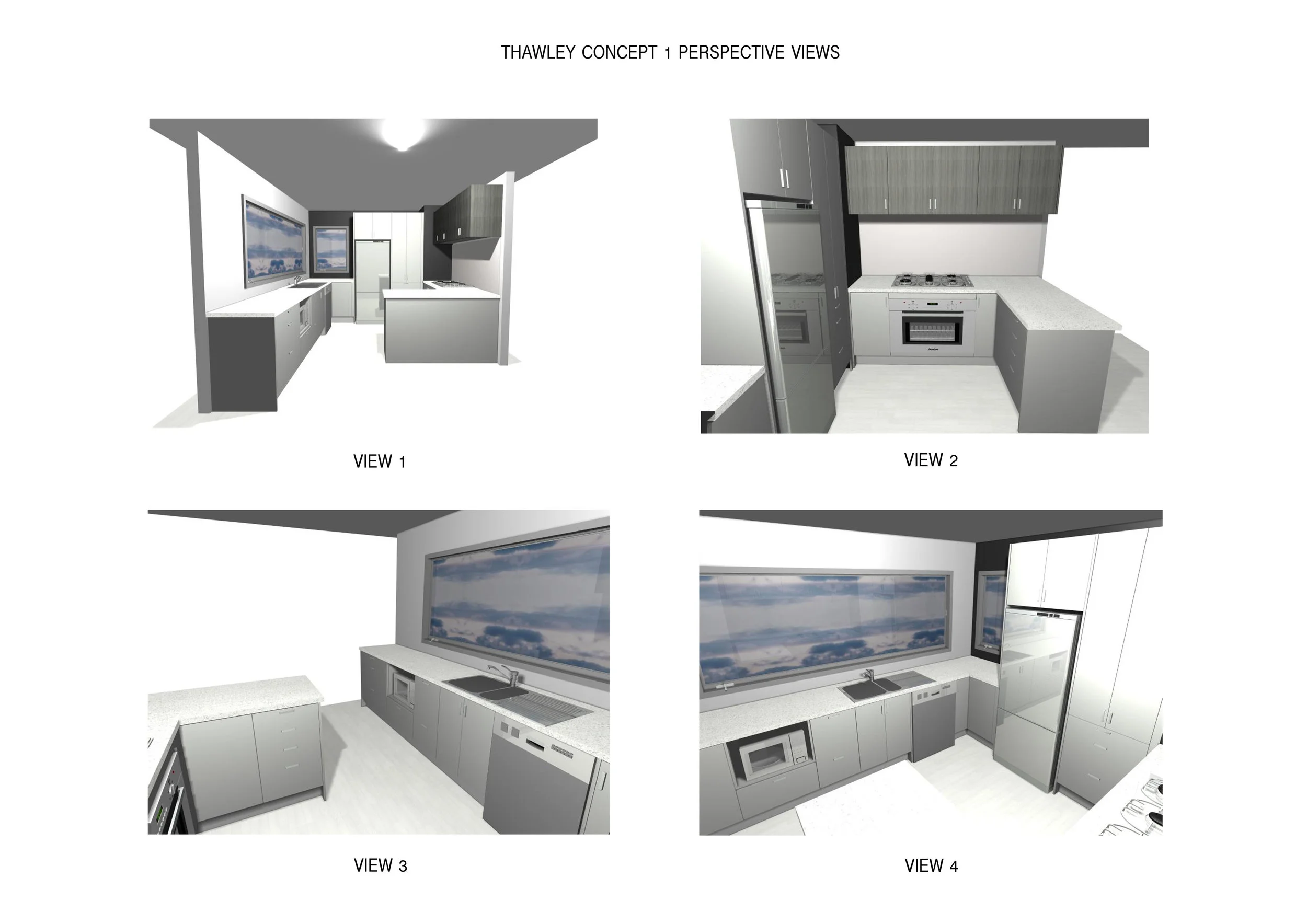

THAWLEY CONCEPT 1 perspectives.jpg
THAWLEY CONCEPT 2 ELEVATION AND FLOOR PLAN.jpg
THAWLEY CONCEPT 1 ANALYSIS.jpg
THAWLEY CONCEPT 2 PERSPECTIVES.jpg
THAWLEY CONCEPT 2 ELEVATIONS AND PLAN.jpg

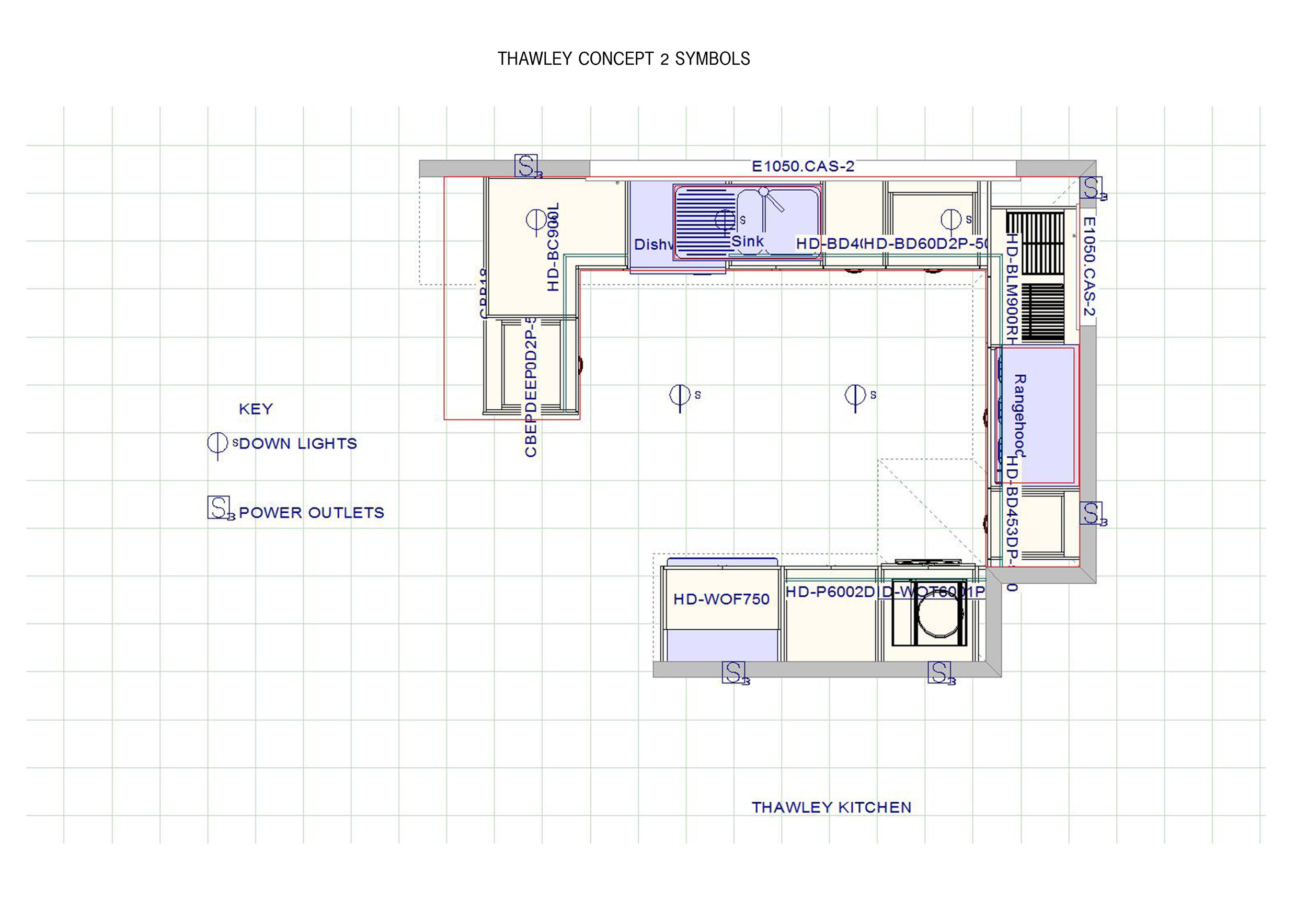

THAWLEYS CONCEPT 2 SYMBOLS.jpg
THAWLEY CONCEPT 2 ANALYSIS.jpg

Porter Kitchen

This kitchen was designed and rendered using 20-20 program.

materials used for this kitchen concept are a mixture of Black forrest foil-wrapped 18mm MDF board doors and High gloss white 18mm foil wrapped doors, with white melamine 16mm particle board carcasses. Benchtop is Infinity acrylic worktop in porcelain white , with a 30mm square profile.

Sink and handles are stainless steel.

perspective views.jpg
elevations and plan.jpg
